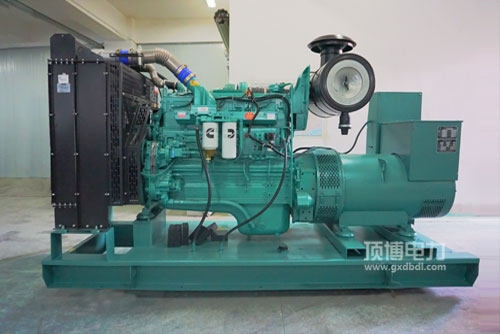

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用打火机然油成本性好: 为先进的然油调节方案，独立拥有的STC、ESTC 分等级调节方案，专项 方案的活塞件边侧进行发动机点燃室，高压力喷洒然油，有效雾化吸入，进行点燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用启动因瞬态性不错: 完满的启动因整体性设计构思，互相配合康明斯显著的EFC整体，管控精密度较高，相应时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用起动因升工率高: 整体上设计的紧奏型.样貌设计适当合理，程序运行顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50拥有全球非主干道第3时段.及美洲Tier2. Tier 3排出政策法规需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必须得要性好， 汽车发行为使用及维系养生保健便利性，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率标准 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的优缺点：体积计算小， 文件压缩比低， 格栅价格空气质量热处理加热，不易重新启动，手机车载式电源模块的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起动因型號	普遍耗油率(kW)Prime Power	应急效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
